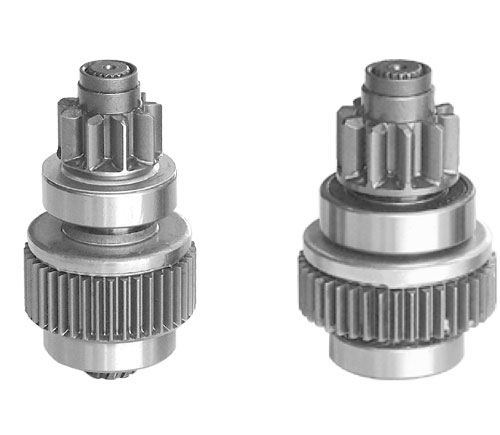

NIPPONDENSO FAMILY FITTING PINION
| 神力编码 | 齿数 | OUTSIDE DIAMETER | NO OF SPLINE | LENGTH | ROTATION | |
|---|---|---|---|---|---|---|
| 98001 | 1101CT | 8 | 24.8 | 18 | 25.7±0.125 | CCW |
| 98002 | 121ACT | 8 | 28.4 | 18 | 25.7±0.125 | CCW |
| 98003 | 54-8249-1 | 9 | 25.5 | 18 | 23.5 ±0.125 | CW |
| 98004 | SH-0742A | 9 | 29.45 | 18 | 25.2±0.125 | CW OR CCW |
| 98005 | QD1229H-1 | 9 | 29.64 | 18 | 25.5(+0.125/0) | CW |
| 98006 | 54-8224A-9-1 | 9 | 29.5 | 18 | 24.7±0.125 | CW |
| 98007 | 028300-7910-2 | 9 | 29.5 | 18 | 24.7±0.125 | CCW |
| 98008 | 11-HA1421 | 9 | 29.5 | 18 | 25 ±0.125 | CW |
| 98009 | 439-406 | 9 | 29.7 | 18 | 24.7±0.125 | CW OR CCW |
| 98010 | RM191C45871-1 | 9 | 29.5 | 18 | 25 ±0.125 | CW |
| 98011 | RM191C18891-1 | 9 | 29.7 | 18 | 25.5(+0.1/0) | CW OR CCW |
| 98012 | QD1330-05-007 | 9 | 30.07 | 18 | 25 ±0.125 | CW OR CCW |
| 98013 | BA0376-1 | 9 | 32.5 | 18 | 23.8(0/-0.21) | CW OR CCW |
| 98014 | 5-81124-003-1 | 9 | 32.5 | 18 | 23.8(0/-0.21) | CW |
| 98015 | PN-03 | 9 | 32.5 | 18 | 23.8(0/-0.21) | CW |
| 98016 | QD1331-05-007B | 9 | 33.2 | 18 | 23.8(0/-0.21) | CW OR CCW |
| 98017 | QD1331-05-007B | 9 | 33.2 | 18 | 23.5 ±0.125 | CW OR CCW |
| 98018 | M4134 | 9 | 33.2 | 18 | 23.5 ±0.125 | CW OR CCW |
| 98019 | 5446-1412-2 | 9 | 34 | 18 | 23.8(0/-0.21) | CW |
| 98020 | BA0326-1 | 9 | 34.2 | 18 | 23.5 ±0.125 | CW |
| 98021 | 54146-142 | 9 | 34.2 | 18 | 23.5 | CW OR CCW |
| 98022 | 439-407 | 9 | 35.6 | 18 | 25.3 ±0.125 | CW |
| 98023 | 541-S-8889 | 9 | 34.6 | 18 | 23.5 ±0.105 | CW |
| 98024 | 50QDJH-207 | 9 | 34.76 | 18 | 23.5(0/-0.15) | CW |
| 98025 | 105988-1 | 9 | 35.7 | 18 | 23.5 ±0.125 | CW |
| 98026 | JS1005-207 | 9 | 36 | 18 | 23.5(0/-0.15) | CW OR CCW |
| 98027 | PN-08 | 9 | 36.2 | 18 | 23.5(+0.1/0) | CW OR CCW |
| 98028 | QD1331A-9-1 | 9 | 36.2 | 18 | 23.8(0/-0.21) | CW |
| 98029 | FKA-03-1 | 9 | 36.2 | 18 | 25 ±0.125 | CW |
| 98030 | 439-402 | 9 | 36.2 | 18 | 25.3 ±0.125 | CW |
| 98031 | QD1331AB | 9 | 35.2 | 18 | 23.8(0/-0.21) | CW |
| 98032 | SZ-0715A | 10 | 28.2 | 18 | 25 ±0.125 | CW |
| 98033 | MX-B1501-110W-1 | 10 | 32.3 | 18 | 23.5 ±0.125 | CW |
| 98034 | 439-404A | 10 | 32.6 | 18 | 23.5 ( 0/-0.125 ) | CW |
| 98035 | BA0340-1 | 10 | 32.2 | 18 | 24.7±0.125 | CW OR CCW |
| 98036 | SZ-0709A | 10 | 33 | 18 | 25.3 ±0.125 | CW |
| 98037 | 439-404 | 10 | 33 | 18 | 25.3 ±0.125 | CW |
| 98038 | HD14QDJ207 | 10 | 33.05 | 18 | 25.5 ( 0/-0.15 ) | CW |
| 98039 | 54-8223A-1 | 10 | 33.05 | 18 | 25.5 ( 0/-0.15 ) | CW |
| 98040 | BA0418-1 | 10 | 37.5 | 18 | 23.5±0.125 | CW |
| 98041 | 439-317 | 10 | 38 | 18 | 23.5±0.125 | CW |
| 98042 | QD1331A-10-1 | 10 | 38 | 18 | 23.8 ( 0/-0.21 ) | CW |
| 98043 | 54-82205-1 | 10 | 40 | 18 | 23.5±0.125 | CW |
| 98044 | 5446-1417-1 | 10 | 40 | 18 | 23.5±0.125 | CW |
| 98045 | SN-0750A | 10 | 40 | 18 | 23.7 ( 0/-0.125 ) | CW |
| 98046 | 541-8678 | 10 | 41 | 18 | 23.5±0.125 | CW |
| 98047 | 54-8224-1 | 11 | 29.7 | 18 | 24.7±0.125 | CW |
| 98048 | QD1235-1 | 11 | 30.14 | 18 | 23.5(0/-0.1) | CCW |
| 98049 | QD1230-2 | 11 | 30.14 | 18 | 25.5(+0.125/0) | CCW |
| 98050 | QD1232-1 | 11 | 30.14 | 18 | 25.5(+0.125/0) | CW |
| 98051 | RM191C75071-1 | 11 | 30.2 | 18 | 23.5±0.125 | CW |
| 98052 | 5446-1414-1 | 11 | 30.2 | 18 | 24.7±0.125 | CW |
| 98053 | 5446-1414-1 | 11 | 30.2 | 18 | 24.7±0.125 | CW |
| 98054 | 151246-602 | 11 | 34.5 | 18 | 23.5±0.125 | CCW |
| 98055 | BA0425-1 | 11 | 33.4 | 18 | 23.5(0/-0.125) | CCW |
| 98056 | QDJ1283.207 | 11 | 34.4 | 18 | 23.5(0/-0.13) | CW |
| 98057 | BA0336-1 | 11 | 34.6 | 18 | 23.5±0.125 | CW |
| 98058 | 028300-7920-1 | 11 | 34.4 | 18 | 23.6±0.125 | CCW |
| 98059 | 5446-1426-1 | 11 | 34.6 | 18 | 19(+0.1/-0.1) | CW |
| 98060 | 2Q2CT | 11 | 40 | 18 | 25±0.125 | CW OR CCW |
| 98061 | ML-G04 | 11 | 40.6 | 18 | 23.7±0.125 | CW |
| 98062 | 5446-1419-1 | 11 | 41.5 | 18 | 23.5±0.125 | CW |
| 98063 | 439-304 | 12 | 37.8 | 18 | 23.5 ( 0/-0.1 ) | CW |
| 98064 | JHA415-1 | 12 | 37.8 | 18 | 23.8 ( 0/-0.21 ) | CW |
| 98065 | 151245-602 | 13 | 39.7 | 18 | 23.5±0.125 | CW |
| 98066 | 4-746 | 13 | 40.3 | 18 | 23.5 ( +0.125/0 ) | CCW |
| 98067 | 17884-1 | 13 | 41 | 18 | 23.5±0.125 | CW |
| 98068 | ST-07110A | 13 | 41 | 18 | 23.5 ( 0/-0.125 ) | CCW |
| 98069 | ST-0767A | 13 | 41 | 18 | 24.5 ( 0/-0.125 ) | CCW |
| 98070 | JS1320-1 | 15 | 37.75 | 18 | 23.5 | CCW |
| 98071 | 028300-6580-15T | 15 | 37.8 | 18 | 23.5 | CCW |
| 98072 | 54-82213 | 15 | 44 | 18 | 23.5±0.125 | CW |
| 98073 | QD1221-2 | 16 | 40.7 | 18 | 24.8(0/-0.25) | CCW |
